Product Description

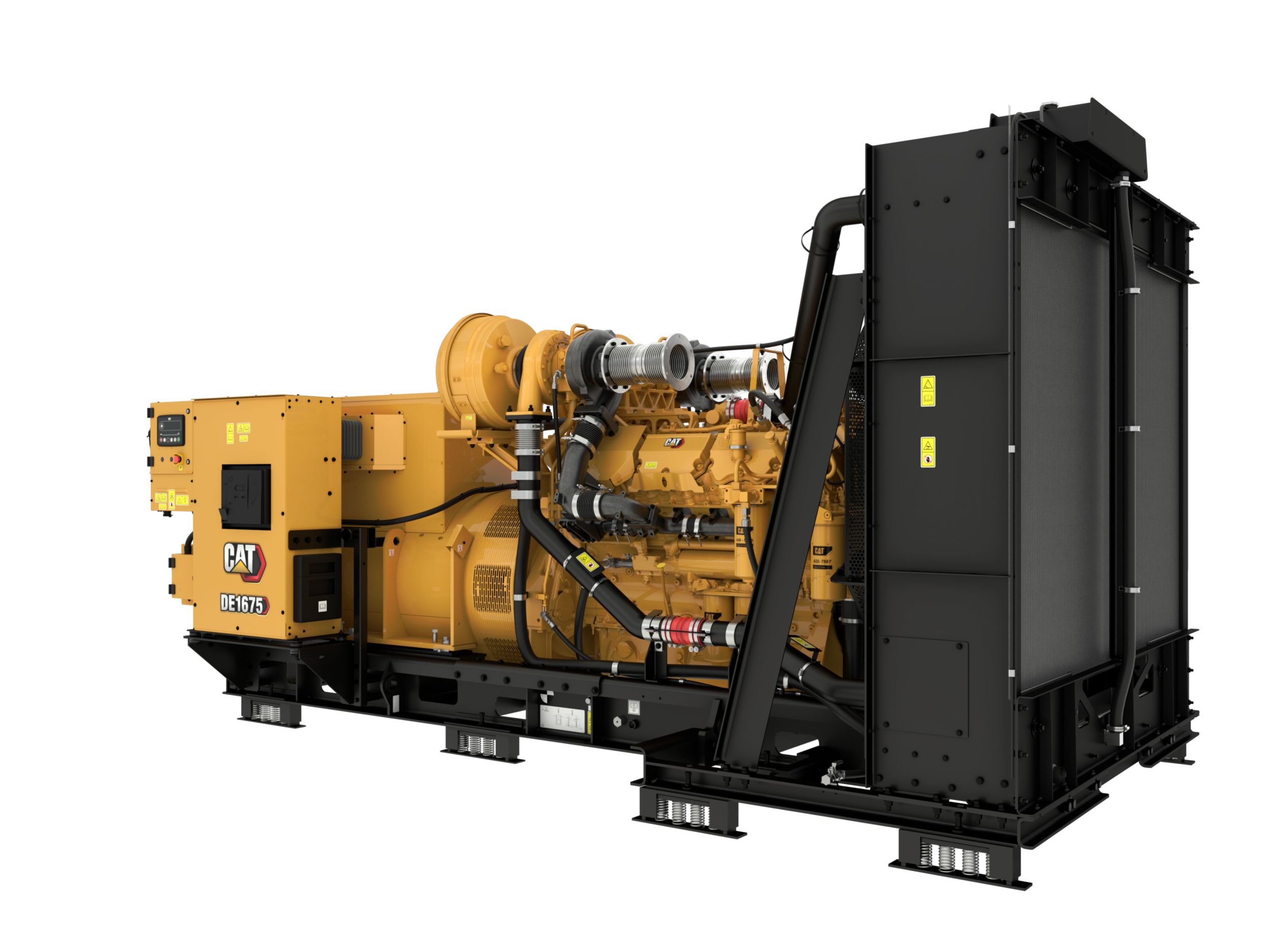

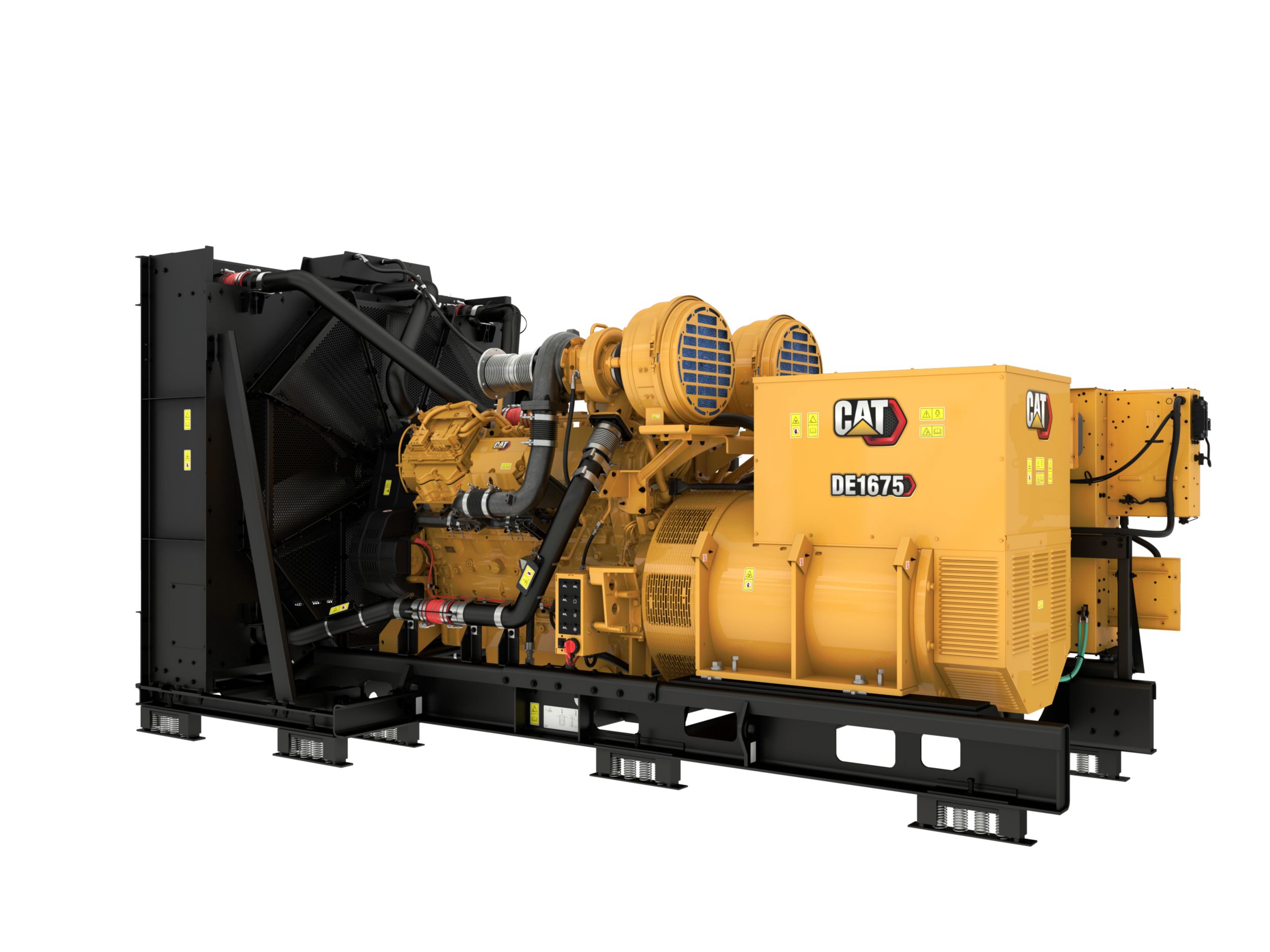

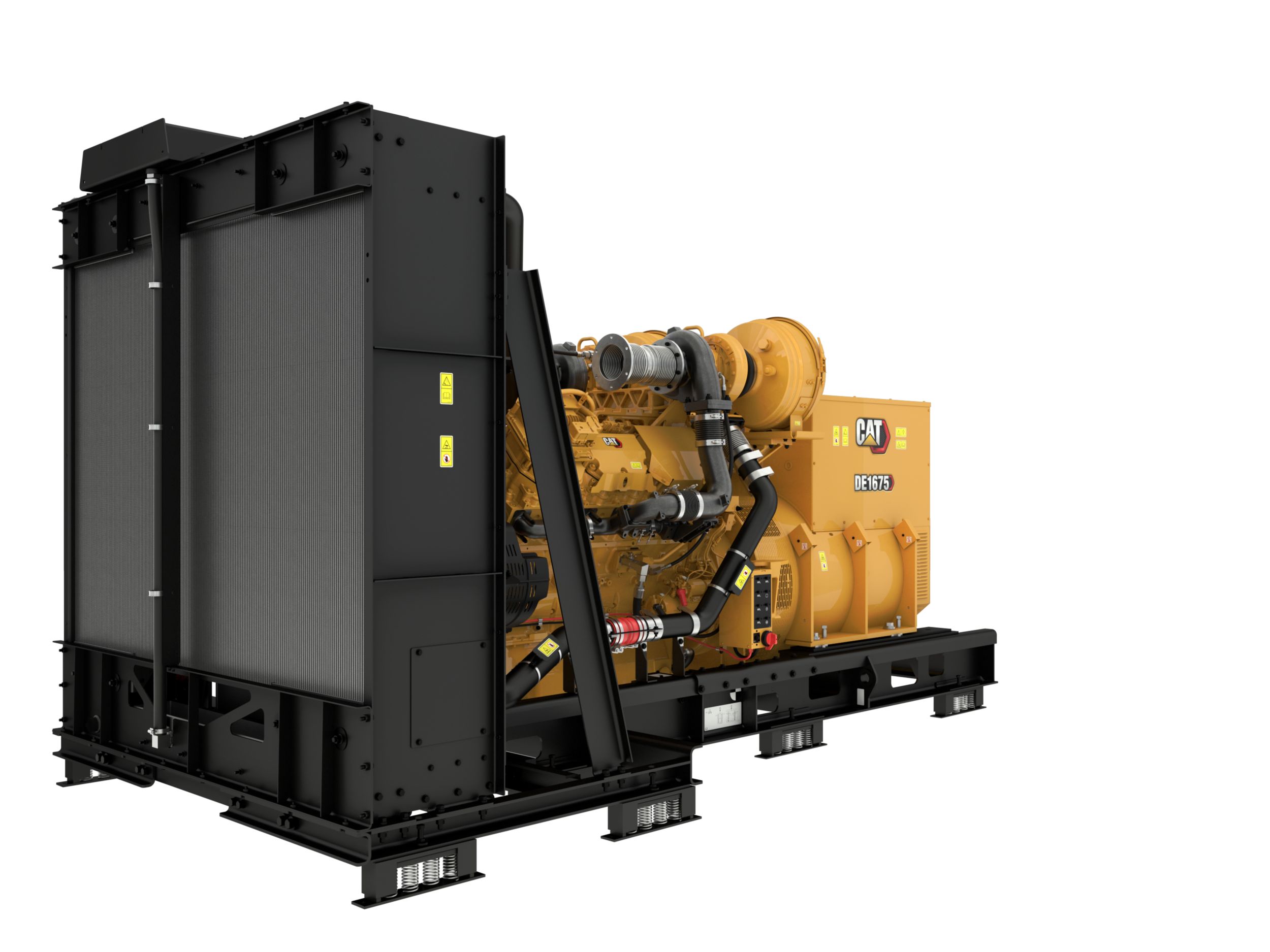

Producing reliable power at 1675 kVA at 50 Hz, the Caterpillar DE1675 diesel generator set is made to meet the needs of your standby and mission critical applications with the new C32B engine with best-in-class power density combining a compact and lighter design.
Generator Set Specifications
- Standby Rating
- 1675 kVA
- Emissions/Fuel Strategy
- Low BSFC
- Voltage
- 400 to 415 Volts
- Frequency
- 50 Hz
- Speed
- 1500 rpm
- Duty Cycle
- Standby, Mission Critical
- Maximum Rating
- 1675 kVA
- Minimum Rating
- 1675 kVA
Engine Specifications
- Engine Model
- C32B TA, V12, 4-Stroke Diesel
- Bore
- 5.7in
- Stroke
- 6.4in
- Displacement
- 1959in³
- Compression Ratio
- 14:1
- Aspiration
- TA
- Fuel System
- EUI
- Governor Type
- ADEM™ A5
Generator Set Dimensions
- Length - Minimum
- 185.43in
- Length - Maximum
- 185.43in
- Width - Minimum
- 89.72in
- Width - Maximum
- 89.72in
- Height - Minimum
- 100.43in
- Height - Maximum
- 105.71in
- Dry Weight - Genset (minimum)
- 18832lb
- Dry Weight - Genset (maximum)
- 20155lb
Standard Equipment
-
- Air Cleaner
-
- Single Element
-
- Starting
-
- Standard Batteries and Electric Starter
-
- Cooling System
-
- Standard Radiator
-
- Alternator
-
- 400 V
- 415 V
-
- Alternator Temperature Rise
-
- 105°C
- 125°C
- 150°C
-
- Excitation
-
- PM
- IE
-
- Control Panel
-
- GCCP 1.3
-
- Connectivity
-
- Cat® Product Link™ PL444 cellular
Optional Equipment
-
- Control Panel
-
- GCCP 1.4
-
- Air Cleaner
-
- Dual Element
-
- Starting
-
- Oversize Batteries and Heavy Duty Electric Starter
-
- Cooling System
-
- High Ambient Radiator
-
- Mufflers
-
- 15 dBA Industrial Grade
-
- Attachments
-
- Anti-condensation Heater
-
- Battery Chargers
-
- 10A
- 20A
