Product Description

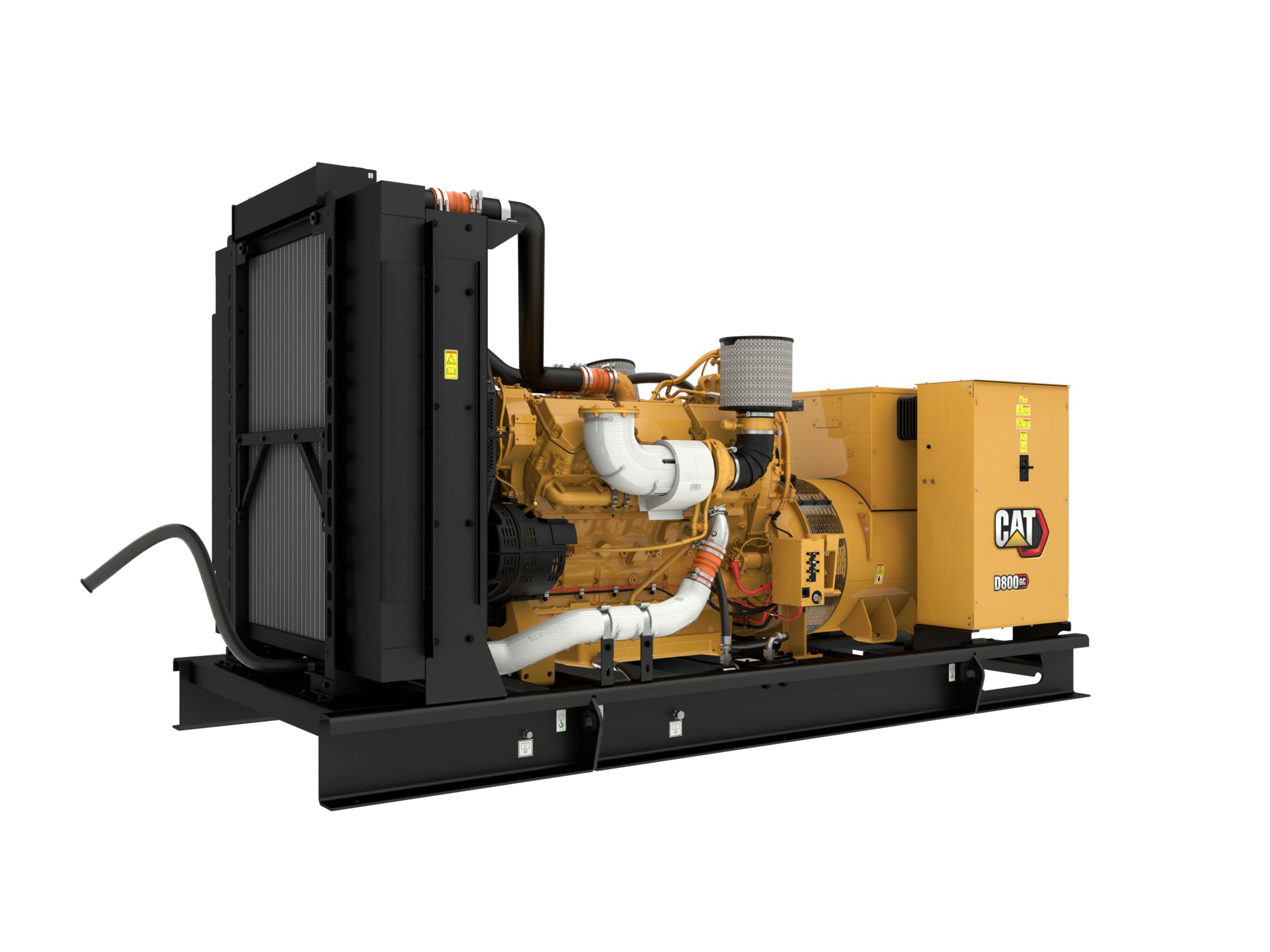

Producing reliable power at 800 ekW, 60 Hz, our D800 GC diesel generator set is made to meet your needs in standby applications. We’ve designed each to ISO 8528-5 transient response requirements and to accept 100% rated load in one step. The generator set is US EPA Stationary Emergency Use Only (Tier 2) certified.

Generator Set Specifications

Maximum Rating
800 ekW
Minimum Rating
800 ekW
Emissions/Fuel Strategy
U.S. EPA Tier 2
Voltage
380 - 480 Volts
Frequency
60 Hz
Speed
1800 rpm
Duty Cycle
Standby

Engine Specifications

Engine Model
C27 TA, V-12, 4-Stroke Water-Cooled Diesel
Bore
5.4in
Stroke
6in
Displacement
1649.47in³
Compression Ratio
16.5:1
Aspiration
TA
Fuel System
MEUI
Governor Type
Adem™A4

Generator Set Dimensions

Length - Minimum
164.3in
Length - Maximum
164.3in
Width - Minimum
73.1in
Width - Maximum
73.1in
Height - Minimum
87.3in
Height - Maximum
87.3in
Dry Weight - Genset (minimum)
13695lb
Dry Weight - Genset (maximum)
13695lb

Standard Equipment

  • Control Panel
    • GCCP1.3
  • Cooling System
    • Radiator

Optional Equipment

  • Control Panels
    • Remote monitoring software
  • Starting/charging
    • Jacket water heater
  • General
    • Single element or dual element air cleaner
    • Circuit breaker panel, based on regional and product configuration
